Third Step: Analyze the results¶

date:	2014-08-14 16:30
tags:	pointq, simulator
author:	Martin Gouy

Website¶

The last part of the process is to analyze the results of the simulation. To do so, please log into the Point Q Analysis Website .

Upload a new simulation¶

The first step is to upload the output database of the simulator (file_recording_event_db.txt). You also have to upload the xml of the network which was used by the simulation.

Note: A network only needs to be uploaded once. Once uploaded, it can be linked to multiple simulations

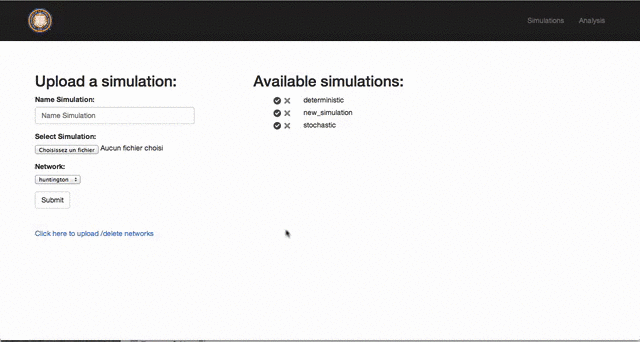

Upload a new network:

../_images/upload_network.gif

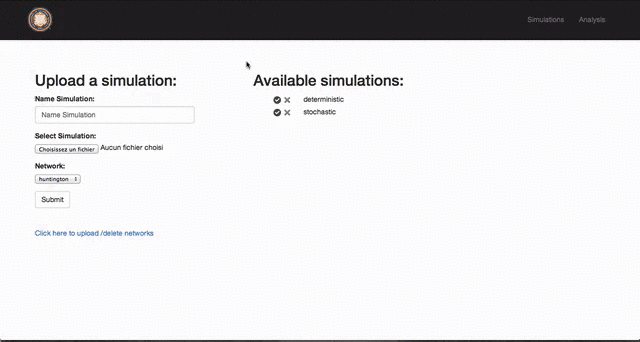

Upload a new simulation:

../_images/upload_simu.gif

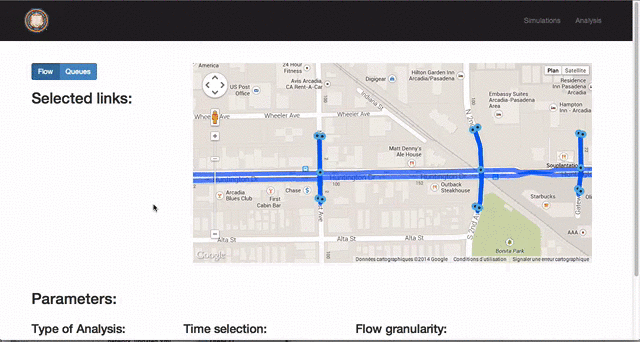

Analyze queues¶

../_images/queues.gif

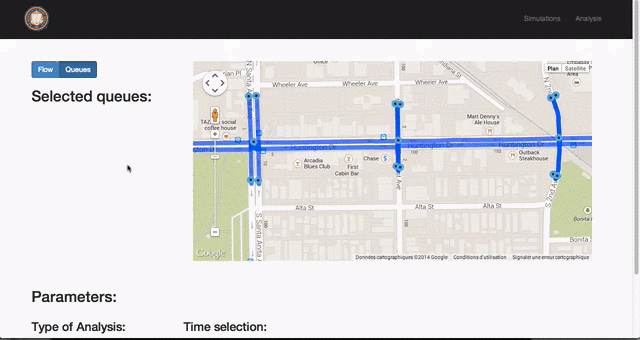

Analyze flows¶

../_images/flows.gif

Export plots¶

../_images/export.gif
